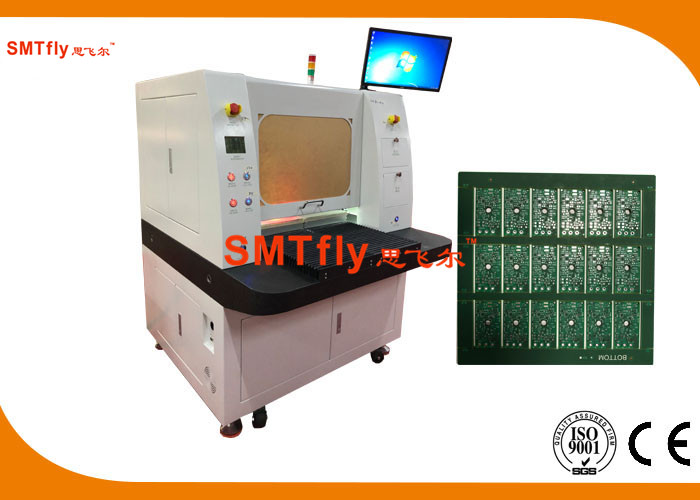

Flexiable PCB Laser Depaneling Machine

Flexiable PCB Laser Depaneling Machine

  • Product description: Flexiable PCB Laser Depaneling Machine

Flexiable PCB Laser Depaneling Machine Parameter


Technical parameters

Main body of laser 1480mm*1360mm*1412 mm
Weight of machine 1500Kg
Power AC220 V
Laser 355 nm

Optowave 10W(US)

Material ≤1.2 mm
Precisio ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 600*450 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient <60 %
The Machine Marble

Flexiable PCB Laser Depaneling Machine Features:

1. High-precision: Low-drift galvanometer combined with fast ironless linear motor system platform for fast cutting. Keep high precision in micrometers.
2. Easy to learn: Self-developed Windows control system, easy-to-use Chinese/English interface, and friendly Views, powerful and diverse, easy to operate.
3. Intelligent Automated: Using high-precision CCD to automatically locate and focus, positioning is fast and accurate, without manual intervention, simple operation, realize the one-button mode of the same type, greatly improve production efficiency. Automatic galvanometer correction, auto focus, full implementation Automation, using laser displacement sensor to automatically adjust the height of the focus to the table, to achieve rapid alignment, saving time.
4. Suitable for cutting: FPC, PCB, chip cutting, cell phone camera module.
Fragments, layers, blocks, or selected areas are cut and formed directly. The cutting edges are neat, smooth, smooth, and free of burrs.
Overfilled plastic. Products can be arranged in a matrix for automatic positioning and cutting, especially for fine, difficult and complex patterns .
5 High-performance lasers: Adopting solid-state UV lasers from international brands, with good beam quality and focused spot. Small, uniform power distribution, small thermal effect, small kerf width, high cutting quality, etc.

Flexiable PCB Laser Depaneling Machine Advantages

High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance

Flexiable PCB Laser Depaneling Machine Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;
