  • Multi-blade PCB Separator Machine,SMTfly-1SN

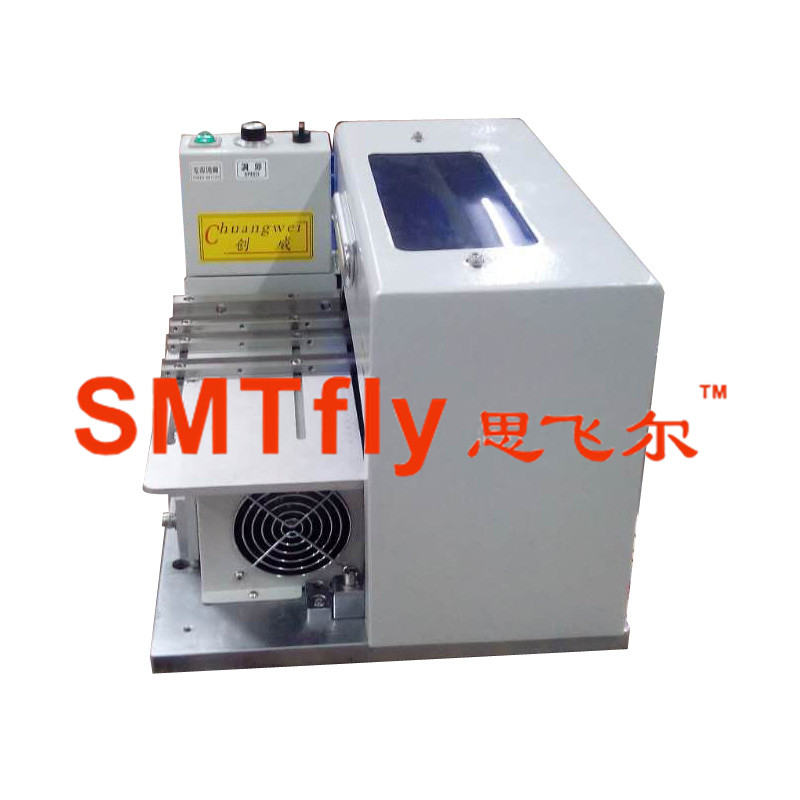

Multi-blade PCB Separator Machine,SMTfly-1SN

Multi-blade PCB Separator Machine,SMTfly-1SN

  • Product description: Multi-blade PCB Separator Machine,SMTfly-1SN
  • INQUIRY

Feature:

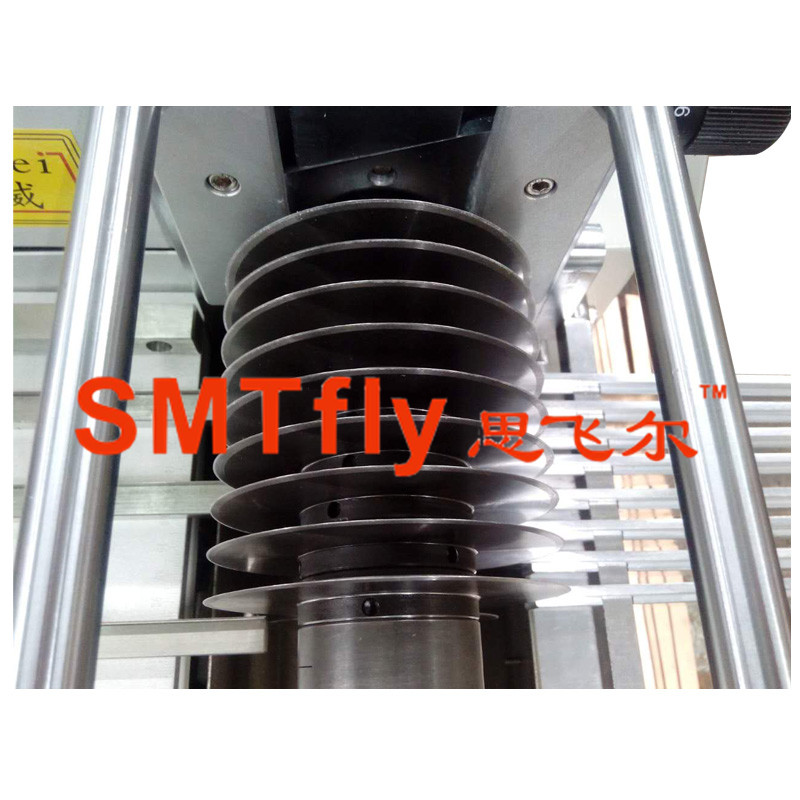

1.9 pairs of blades is available
2.Configuration of the blades is adjusted toindividual PCB
3.Sensors are used to monitor the separating process
4.The PCBs are placed either by hand or they feed automatically by a loading station.
5.Easy operating
6.Could be adjusted according to PCB sizes and customers' requirements

7.Could be customized made as customers' request





Specification:

Separation speed:
100-220 mm/s
Cutting length:
100 mm -unlimited
Cutting thickness:
0.8-3.5mm
Cutting width:
8-225 mm
Number of blades:
max 9 pairs
Voltage :
110/220V
Machine size :
1155 x 405x330mm
Machine weight :
70 KG
Length of platform:
1150 mm (customized )

If you want to see the video, please click here.
