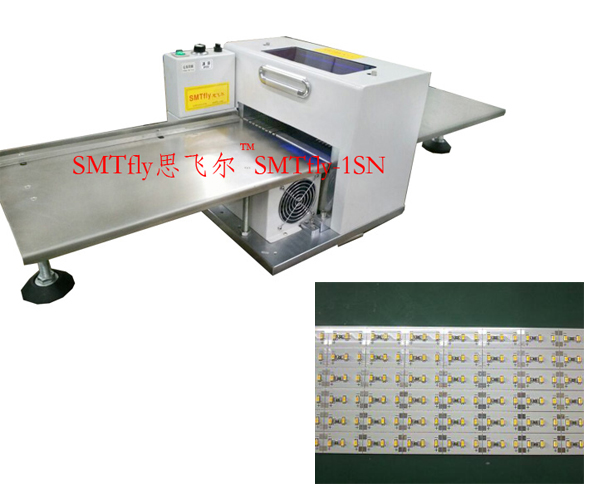

Circuit Board Depaneling Machine V Cut Pcb Cutter SMTfly-1SN

Product description: Circuit Board Depaneling Machine V Cut Pcb Cutter SMTfly-1SN
INQUIRY

Circuit Board Depaneling Machine V Cut Pcb Cutter SMTfly-1SNFeature:
1.9 pairs of blades is available
2.Configuration of the blades is adjusted toindividual PCB
3.Sensors are used to monitor the separating process
4.The PCBs are placed either by hand or they feed automatically by a loading station.
5.Easy operating
6.Could be adjusted according to PCB sizes and customers' requirements
7.Could be customized made as customers' request

Connector pcb depaneling

Circuit Board Depaneling Machine V Cut Pcb Cutter SMTfly-1SNSpecification:
Separation speed: 100-220 mm/s
Cutting length: 100 mm -unlimited
Cutting thickness: 0.8-3.5mm
Cutting width: 8-225 mm
Number of blades: max 9 pairs
Voltage : 110/220V
Machine size : 1155 x 405x330mm
Machine weight : 70 KG
Length of platform: 1150 mm (customized )

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
