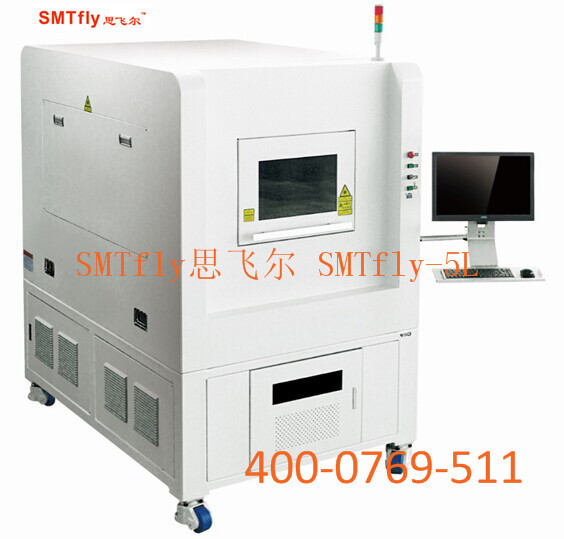

Laser PCB Depaneling, SMTfly-5L

Laser PCB Depaneling, SMTfly-5L Feature:

More quick and easy, shorten the delivery time;
High quality 、no distortion、surface clean& uniformity;
Gathering the CNC tech、laser tech、software tech…High accuracy、High speed;


Laser PCB Depaneling, SMTfly-5L Specification:

Laser

Q-Switched diode-pumped all solid-state UV laser

Laser Wavelength

355nm

Laser Power

10W/12W/15W/18W@30KHz

Positioning Precision of Worktable of Linear Motor

±2μm

Repetition Precision of Worktable of Linear Motor

±1μm

Effective Working Field

400mmX300mmCustomizable

Laser Scanning Speed

2500mm/s (max)

Galvanometer Working Field Per One Process

40mmх40mm


Laser PCB Depaneling, SMTfly-5L Application:

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;
