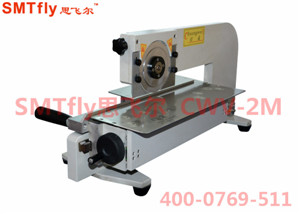

PCB Depanel, SMTfly-2M


V-CUT PCB depanel machine specifications:

Model SMTfly-2M
Max. PCB cutting length 330mm
PCB cutting thickness 0.6-3.5mm
PCB cutting speed by hand
PCB cutting machine weight 50Kg
PCB cutting machine size 720 X 310 X 330mm



V-CUT PCB Depanel features:
1.Use upper circular blade and bottom linear blade.
2.Cut pre-scored v groove PCB without stress on either PCB or component.
3.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
4.Blades can be re-grinded to use.
